N172TQ

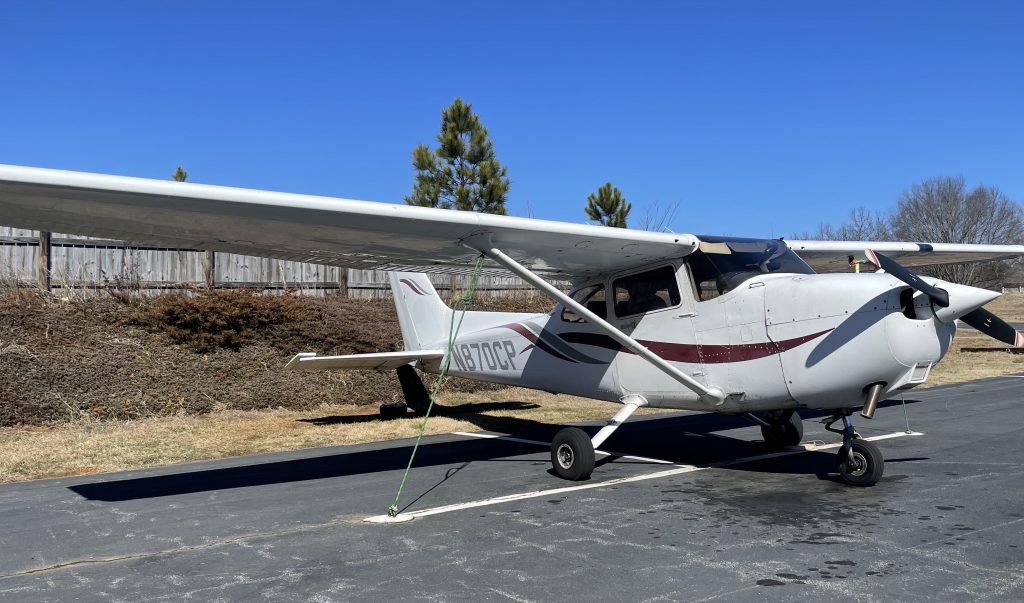

Performance & Specifications – 1998 Cessna Skyhawk 172R N870CP

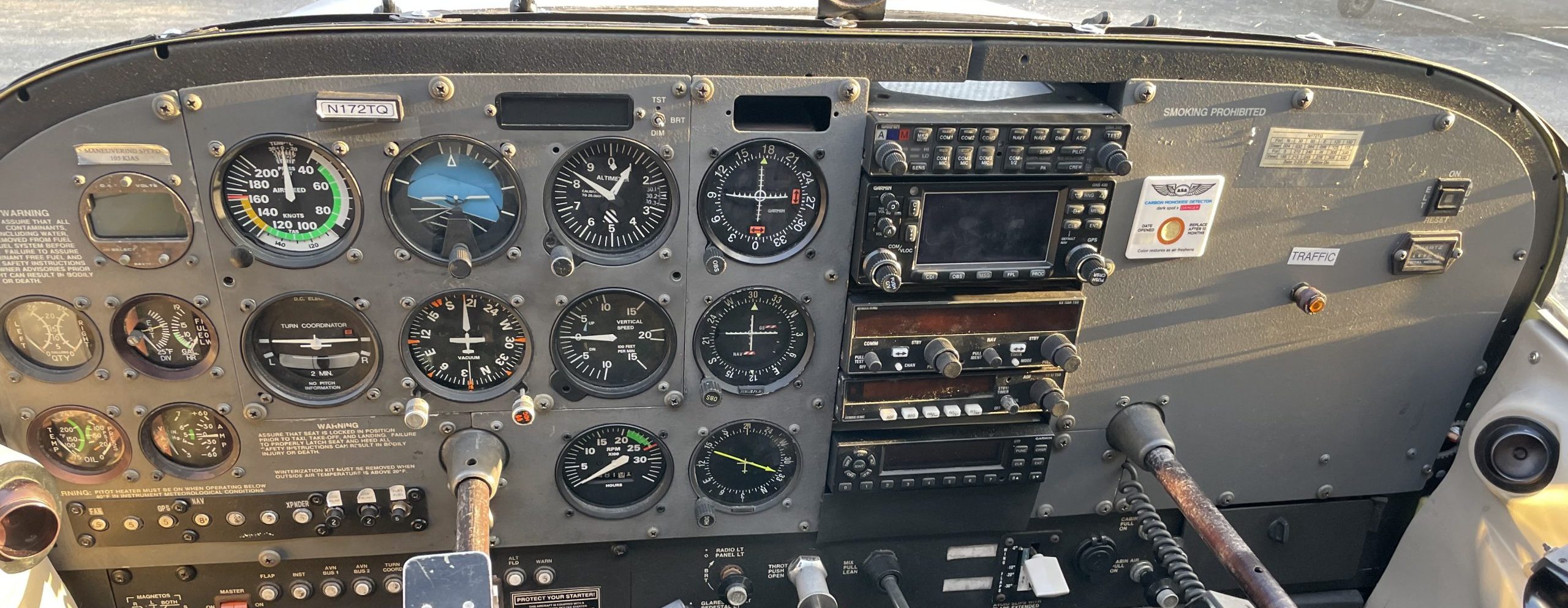

Avionics:
Garmin GMA-340 Audio Panel
Garmin GNS-430 WAAS IFR approved GPS
Bendix/King KX155A Nav/Comm transceiver
Garmin GTX-345 Transponder
Horsepower at 2,700 RPM 180 HP
Engine Textron Lycoming IO-360-L2A
Fuel Capacity (Usable) 53 US. GAL.
Fuel Burn @ 75% power 10.2 GPH
Maximum Take-Off Weight 2,550 lbs
Propeller McCauley, 2-Bladed Fixed Pitch
Seating 4

Key Airspeeds:
Best Glide 68 KIAS
Vy 74 KIAS
Vx 62 KIAS
Va @ 2,550 lbs 105 KIAS

Interior Dimensions – Cabin
Length 142 in
Height 48 in
Width 39.5 in

Exterior Dimensions – Overall
Length 26 ft 11 in
Height 8 ft 11 in
Wing Span 36 ft 1 in

172R Pilot Operating Handbook

N172TQ STC Supplemental POH

Garmin 430 Quick reference

Garmin GMA 340 Audio Panel

N172TQ Weight and Balance
